Ultima Cat6A Cable Extender




Product information

Description

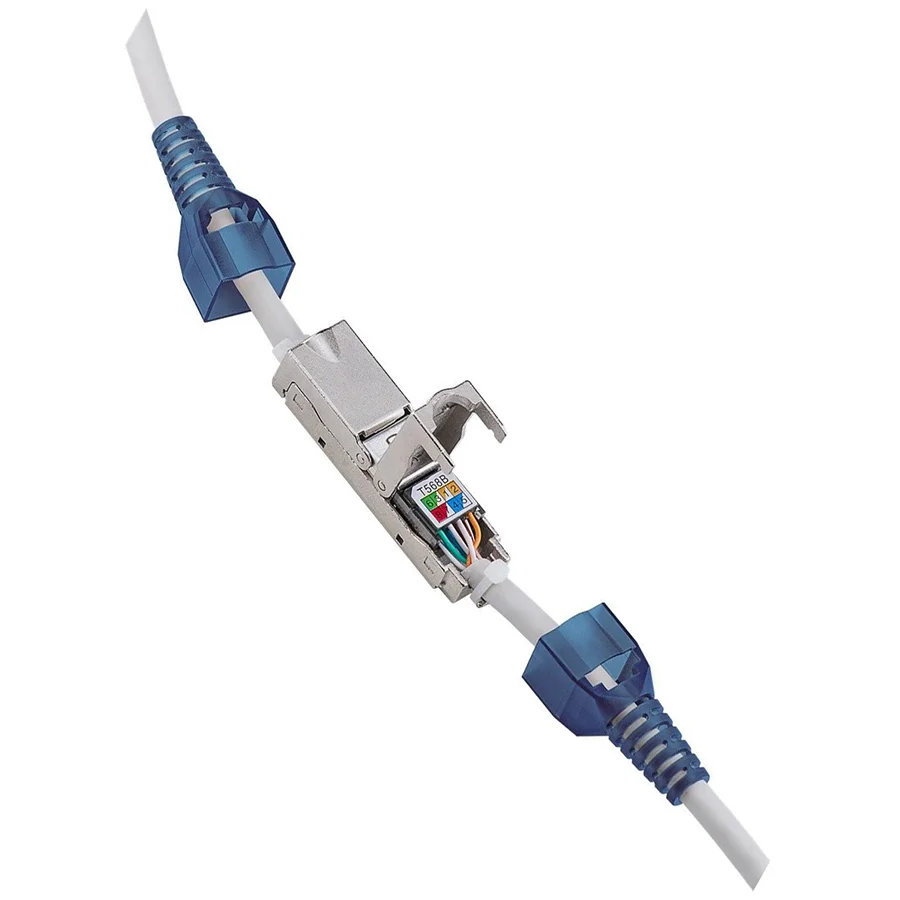

Enables joining of two cables for relocation of patch panels or work area outlets. Can be used to repair broken or damaged cables or switch from an external grade cable to an internal one.

  • Toolless termination

  • Suitable for solid or stranded conductors

  • Compatible with Cat6A, Cat6 and Cat5e cables

  • Small overall dimensions (18 x 26 x 39mm)

  • Integral shield connection and strain relief

  • Solid conductors from 0.5 to 0.64mm

  • Stranded conductors from 0.61 to 0.76mm

  • Overal sheath diameter from 5.0 to 9.7mm

Download Data Sheets

816763 Ultima Cat6A Cable Extender
